Mga parameter ng output
Serye ng MCP-H10-A
| Katangian | Simbolo | Min | Typ | Max | Yunit |
| Min pressure output（0℃ hanggang 85℃）@ VS = 5.0V | V off | 0.44 | 0.5 | 0.56 | VDC |
| Max pressure output（0℃ hanggang 85℃）@ VS = 5.0V | V FSO | 4.44 | 4.5 | 4.56 | VDC |
| Full scale na output（0℃ hanggang 85℃）@VS = 5.0V | V FSS | 3.88 | 4 | 4.12 | VDC |
Serye ng MCP-H10-B
| Katangian | Simbolo | Min | Typ | Max | Yunit |
| Min pressure output（0℃ hanggang 85℃）@ VS =3.3V | V off | 0.055 | 0.1 | 0.145 | VDC |
| Max na output ng presyon（0℃ hanggang 85℃）@ VS =3.3V | V FSO | 3.055 | 3.1 | 3.145 | VDC |
| Full scale na output（0℃ hanggang 85℃）@VS = 3.3V | V FSS | 2.91 | 3 | 3.09 | VDC |
Paglalarawan ng Function
Pangkalahatang-ideya
Gumagamit ang MCP-H10 series pressure sensor ng MEMS piezoresistive pressure chip bilang isang pressure sensing element, na naglalabas ng raw signal na proporsyonal sa pressure sa kapaligiran. Ang isang conditioning chip na may built-in na 24 bit ADC ay nagtutulak sa sensitibong elemento, pinalalakas ang orihinal nitong signal, binabayaran ang temperatura, at linearity, at naglalabas ng analog na boltahe na output signal na linearly na nauugnay sa inilapat na presyon.
Paglipat ng function
 |  |

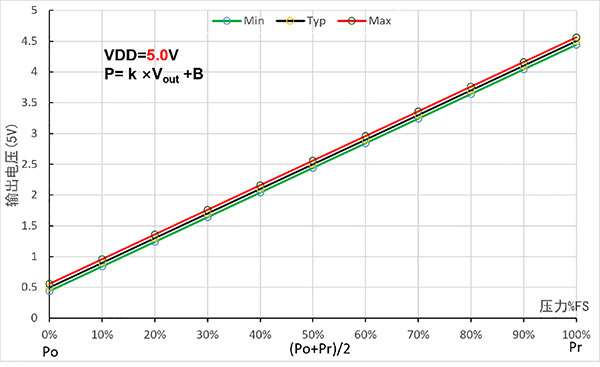

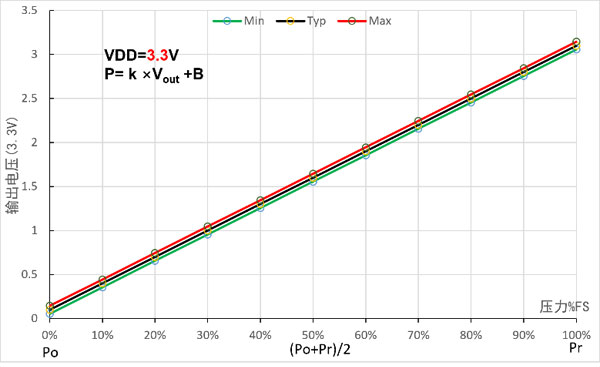

Figure 3.1 Analog Output Transfer Function
P= k ×Vout B
Tandaan: Ang Vout ay ang analog na output boltahe (unit: V); P ay ang halaga ng presyon (sa kPa); k. Ang B ay kumakatawan sa linear coefficient at offset, tulad ng ipinapakita sa talahanayan sa ibaba.
Talahanayan 3.1 Analog Output Transfer Function Parameter
| Modelo ng produkto（5.0V） | Saklaw (kPa) | Output boltahe(V) | Mga coefficient at offset | |||
| Po | Sinabi ni Sinabi ni Pr | O L | O H | k | B | |
| MCP-H10-A2KP5P | 0 | 2.5 | 0.5 | 4.5 | 0.625 | -0.3125 |
| MCP-H10-A2KP5PN | -2.5 | 2.5 | 0.5 | 4.5 | 1.25 | -3.125 |
| MCP-H10-A5KPP | 0 | 5 | 0.5 | 4.5 | 1.25 | -0.625 |
| MCP-H10-A5KPPN | -5 | 5 | 0.5 | 4.5 | 2.5 | -6.25 |
| MCP-H10-A10KPP | 0 | 10 | 0.5 | 4.5 | 2.5 | -1.25 |
| MCP-H10-A10KPPN | -10 | 10 | 0.5 | 4.5 | 5 | -12.5 |
| MCP-H10-A40KPP | 0 | 40 | 0.5 | 4.5 | 10 | -5 |
| MCP-H10-A40KPN | 0 | -40 | 0.5 | 4.5 | -10 | 5 |
| MCP-H10-A40KPPN | -40 | 40 | 0.5 | 4.5 | 20 | -50 |
| MCP-H10-A100KPP | 0 | 100 | 0.5 | 4.5 | 25 | -12.5 |
| MCP-H10-A100KPN | 0 | -100 | 0.5 | 4.5 | -25 | 12.5 |
| MCP-H10-A100KPPN | -100 | 100 | 0.5 | 4.5 | 50 | -125 |
| MCP-H10-A200KPP | 0 | 200 | 0.5 | 4.5 | 50 | -25 |
| MCP-H10-A200KPPN | -100 | 200 | 0.5 | 4.5 | 75 | -137.5 |
| MCP-H10-A500KPP | 0 | 500 | 0.5 | 4.5 | 125 | -62.5 |
| MCP-H10-A1000KPP | 0 | 1000 | 0.5 | 4.5 | 250 | -125 |
| MCP-H10-A1000KPPN | -100 | 1000 | 0.5 | 4.5 | 275 | -237.5 |
| Sinabi ni Sinabi ni Product model（3.3V） | Saklaw (kPa) | Output boltahe(V) | Mga coefficient at offset | |||
| Po | Sinabi ni Sinabi ni Pr | OL | OH | k | B | |
| MCP-H10-B2KP5P | 0 | 2.5 | 0.1 | 3.1 | 0.833 | -0.083 |
| MCP-H10-B2KP5PN | -2.5 | 2.5 | 0.1 | 3.1 | 1.667 | -2.667 |
| MCP-H10-B05KPP | 0 | 5 | 0.1 | 3.1 | 1.667 | -0.167 |
| MCP-H10-B05KPPN | -5 | 5 | 0.1 | 3.1 | 3.333 | -5.333 |
| MCP-H10-B10KPP | 0 | 10 | 0.1 | 3.1 | 3.333 | -0.333 |
| MCP-H10-B10KPPN | -10 | 10 | 0.1 | 3.1 | 6.667 | -10.667 |
| MCP-H10-B40KPP | 0 | 40 | 0.1 | 3.1 | 13.333 | -1.333 |
| MCP-H10-B40KPN | 0 | -40 | 0.1 | 3.1 | -13.333 | 1.333 |
| MCP-H10-B40KPPN | -40 | 40 | 0.1 | 3.1 | 26.667 | -42.667 |
| MCP-H10-B100KPP | 0 | 100 | 0.1 | 3.1 | 33.333 | -3.333 |
| MCP-H10-B100KPN | 0 | -100 | 0.1 | 3.1 | -33.333 | 3.333 |
| MCP-H10-B100KPPN | -100 | 100 | 0.1 | 3.1 | 66.667 | -106.667 |
| MCP-H10-B200KPP | 0 | 200 | 0.1 | 3.1 | 66.667 | -6.667 |
| MCP-H10-B200KPPN | -100 | 200 | 0.1 | 3.1 | 100 | -110 |
| MCP-H10-B500KPP | 0 | 500 | 0.1 | 3.1 | 166.667 | -16.667 |
| MCP-H10-B1000KPP | 0 | 1000 | 0.1 | 3.1 | 333.333 | -33.333 |
| MCP-H10-B1000KPPN | -100 | 1000 | 0.1 | 3.1 | 366.667 | -136.667 |
